01
750-lb capacity
Built to carry one passenger with mobility equipment and accommodate most power wheelchairs and scooters.
Mac's Vertical Home Lift · Residential VPL
MACS PL50:
AMERICA'S BEST-BUILT PORCH LIFT.

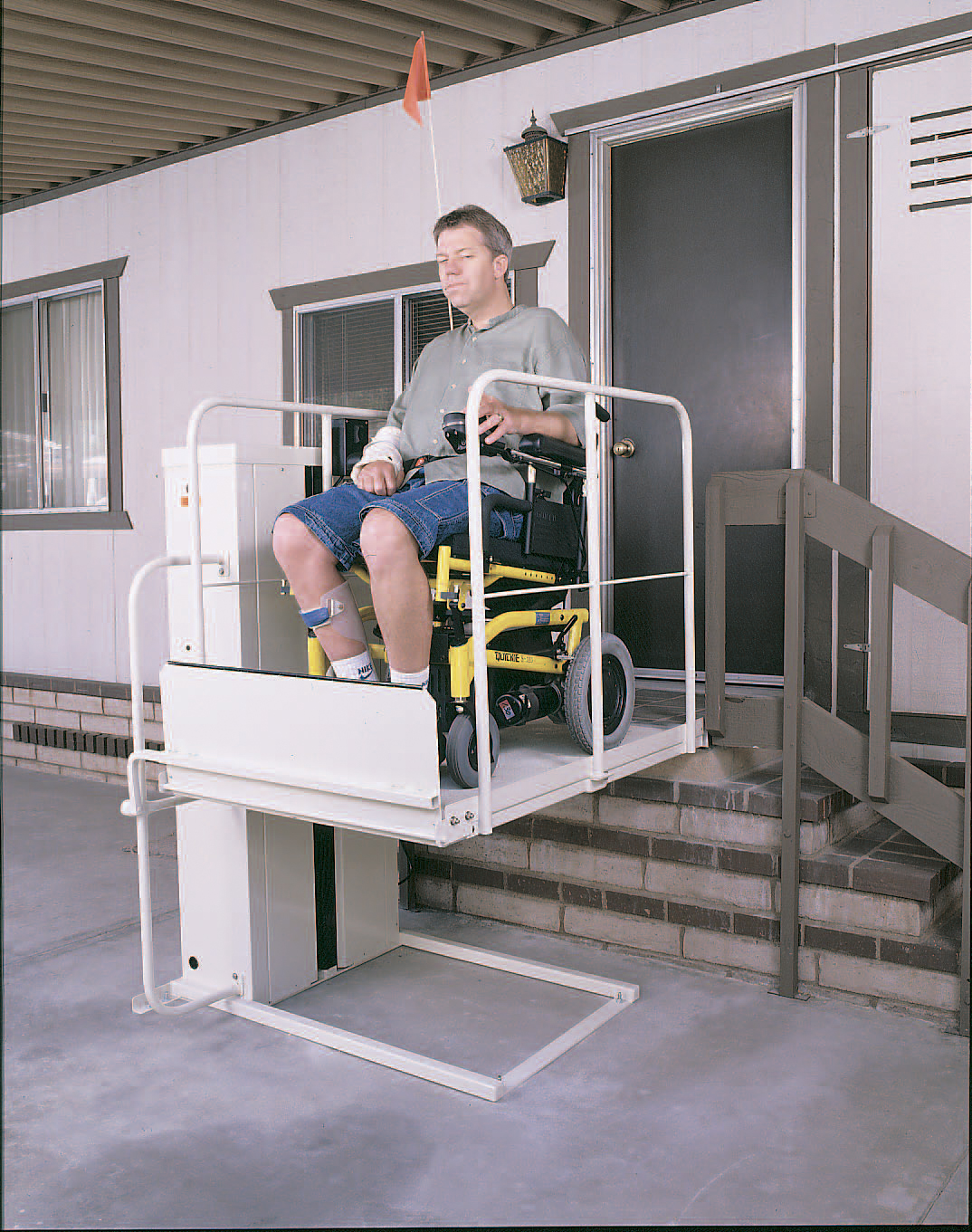

A rugged residential vertical platform lift designed to make porches, decks, mobile homes and raised entrances easier to access with a wheelchair or mobility scooter. The PL50 combines straightforward controls, heavy-duty construction and proven residential performance in a clean, compact design.
750 LBRated residential load
50"Maximum PL50 landing height
5 YEARManufacturer limited warranty
1/2 HPInstant-reverse drive motor
Built for everyday home access
A simple idea, engineered to work hard.
The Mac's PL50 is designed for everyday residential use. Its low platform, automatic access ramp, protective rails and constant-pressure controls are intended to make boarding, raising, lowering and exiting easy to understand.
The manufacturer describes the PL50 as easy to operate, easy to install and virtually maintenance free. Its steel structure and weather-resistant finish make it suitable for the demanding conditions common to outdoor porch-lift installations.
Manufacturer PL50 InformationWhy Electropedic recommends the MACS PL50
Designed around safety, reliability and serviceability.
For a residential porch lift, the details matter: dependable controls, a strong platform, easy wheelchair entry, weather protection and a drive system that can be serviced for the long term.
02
Constant-pressure control
The user maintains pressure on the control while traveling, allowing the lift to stop when the control is released.
03
Automatic lower ramp
A 12-inch automatic ramp helps bridge the entrance to the platform and forms part of the lift's access and safety system.
04
Heavy steel structure
Formed and welded steel construction provides the solid foundation expected from a permanent residential accessibility lift.
05
Manual lowering provision
A manual hand-crank lowering device is included in the manufacturer's specification for emergency or service situations.
06
Weather-ready finish
Exterior-grade powder-coat finishing helps protect the lift's steel components in outdoor residential installations.
07
AC or DC configurations
Manufacturer specifications list both AC-powered and DC-powered versions, each using a 1/2-horsepower drive motor.
08
Proven cycle testing
Mac's reports a PL50 test with a full 750-lb load completing more than 129,600 lift cycles without failure or maintenance.
09
Five-year limited warranty
The manufacturer advertises a five-year limited warranty on the new PL50 residential vertical home lift.
MACS PL50 residential specifications
Heavy-duty where it counts.
Key specifications are drawn from Mac's published PL50 / PL72 technical materials for the residential 750R series.
Rated Load750 lb maximum
Passengers1 + mobility equipment
PL50 Maximum Rise50 inches
Platform48" L × 32¼" W
Automatic Ramp12 inches
AC Drive½ hp · 115 VAC · 5.9 amp
DC Drive½ hp · 12 VDC
Final Drive#50 drive chain
ControlConstant-pressure paddle + key switch
Manual LoweringStandard hand crank
FrameFormed welded steel
FinishExterior-grade powder coat
Real-world porch lift applications

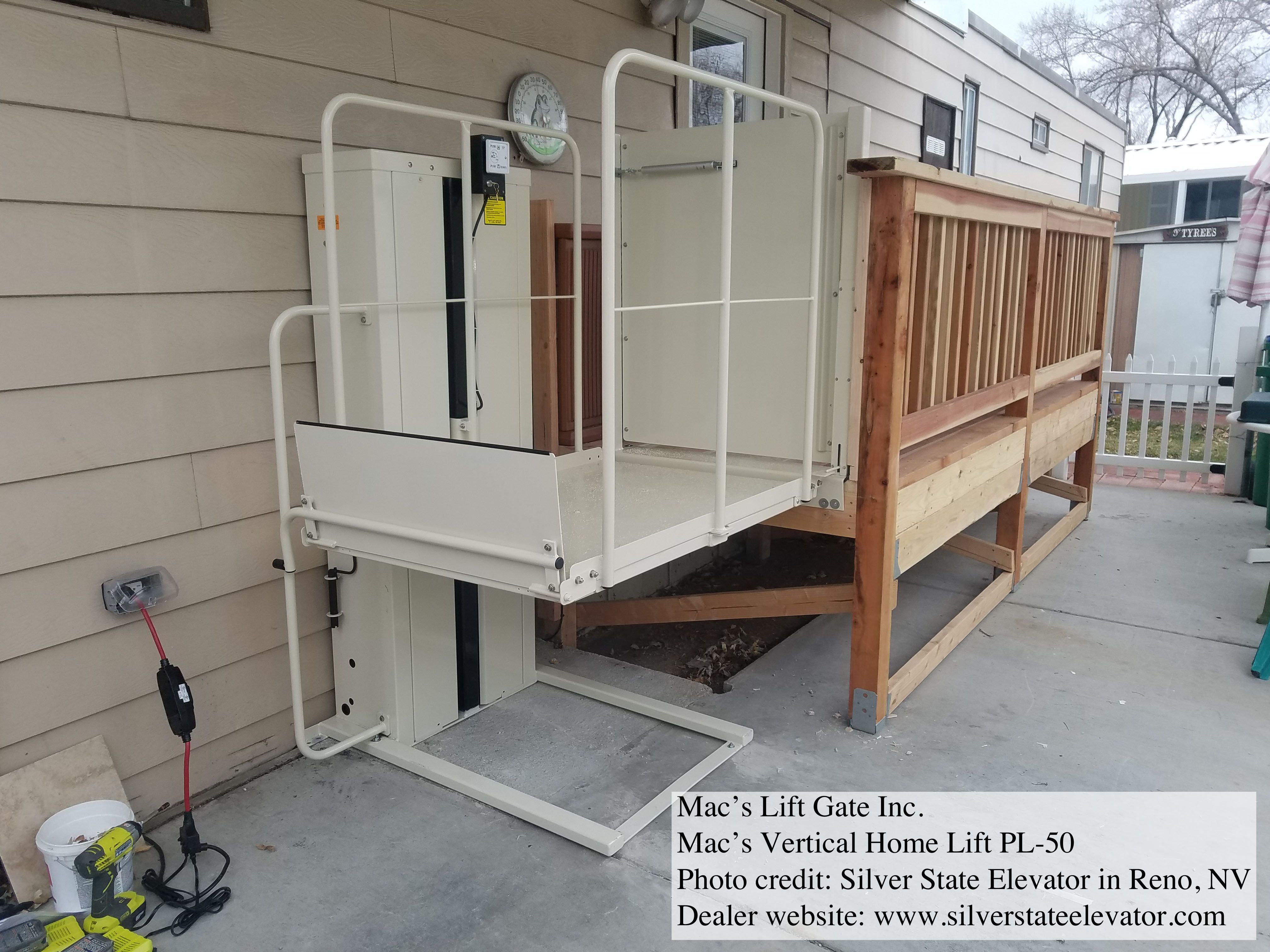

Compact access for porches, decks and raised entrances.
Los Angeles · California · Accessibility Specialists
Porch lifts, stair lifts and vertical platform lifts.
Kraus Lifts
New and used accessibility lifts, home mobility equipment, installation and service.
Los Angeles Stair Lifts
Residential stair-lift and porch-lift information for the Los Angeles area.
Los Angeles Chair Stair Lifts
Local chair stair lift, VPL and accessibility product information.
Los Angeles Electropedic
Electropedic mobility, homecare and accessibility products serving Los Angeles.
Electropedic showrooms & service
Local guidance before, during and after installation.
Southern California
Burbank
907 N. Hollywood Way
Burbank, CA 91505
800-233-7382
Porch lifts · stair lifts · lift chairs · scooters · wheelchairs · adjustable and homecare products.
Arizona
Phoenix
1035 E. Camelback Road
Phoenix, AZ
800-733-1818
Serving the Phoenix metropolitan area with mobility, homecare and accessibility equipment.
A porch lift is only as good as the installation behind it.
Compare the lift, the installation, the warranty and the service.
Electropedic helps customers evaluate the site, required lifting height, platform approach, landing configuration, electrical needs and installation requirements before recommending a vertical platform lift.
Call for a Free Quote · 800-233-7382
